풍선확장식성형술용카테터

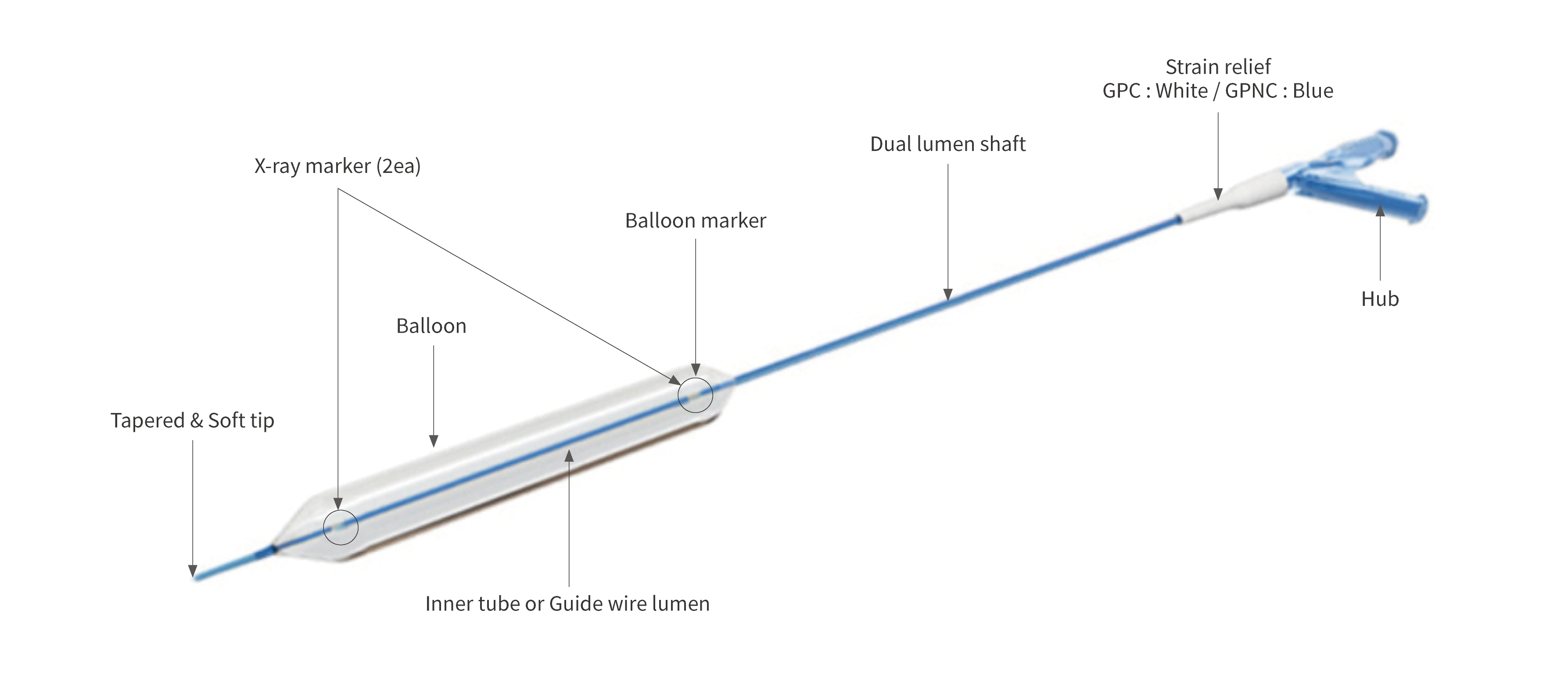

GENOSS PTA
설명
- 다양한 병변 사용을 위한 다양한 풍선 사이즈
- 빠른 가압 & 감압을 위한 튜브 구조
- 샤프트 꺾임에 대한 저항성이 우수함
제품 문의하기
상세정보
특징
GPC 모델
Nominal Pressure
12ATM: Ø4, Ø5, Ø6, Ø7, Ø8
11ATM: Ø9
10ATM: Ø10, Ø12

Rated Burst Pressure
18ATM: Ø4, Ø5, Ø6, Ø7(80mm 이하), Ø8
16ATM: Ø7(100mm 이상), Ø9
14ATM: Ø10, 12
GNPC 모델
Nominal Pressure
12ATM: Ø4, Ø5, Ø6, Ø7, Ø8
11ATM: Ø9
10ATM: Ø10, Ø12

Rated Burst Pressure
23ATM: Ø4(60mm 이하), Ø5(80mm 이하), Ø6(80mm 이하), Ø7(80mm 이하)
20ATM: Ø4(80mm 이상), Ø5(100mm 이상), Ø6(100mm 이상), Ø7(100mm 이상)
18ATM: Ø8
16ATM: Ø9
17ATM: Ø10, Ø12



모델명 Catheter length : 50 cm
Balloon Diameter
(mm)		 Balloon Length (mm)
20 40 60 80 100 120
4.0 GPNC-04-020-050 GPNC-04-040-050 GPNC-04-060-050 GPNC-04-080-050 GPNC-04-100-050 GPNC-04-120-050
5.0 GPNC-05-020-050 GPNC-05-040-050 GPNC-05-060-050 GPNC-05-080-050 GPNC-05-100-050 GPNC-05-120-050
6.0 GPNC-06-020-050 GPNC-06-040-050 GPNC-06-060-050 GPNC-06-080-050 GPNC-06-100-050 GPNC-06-120-050
7.0 GPNC-07-020-050 GPNC-07-040-050 GPNC-07-060-050 GPNC-07-080-050 GPNC-07-100-050 GPNC-07-120-050
8.0 GPNC-08-020-050 GPNC-08-040-050 GPNC-08-060-050 GPNC-08-080-050 - -
9.0 GPNC-09-020-050 GPNC-09-040-050 GPNC-09-060-050 GPNC-09-080-050 - -
10.0 GPNC-10-020-050 GPNC-10-040-050 GPNC-10-060-050 - - -
12.0 GPNC-12-020-050 GPNC-12-040-050 GPNC-12-060-050 - - -

모델명 Catheter length : 80 cm
Balloon Diameter
(mm)		 Balloon Length (mm)
20 40 60 80 100 120
4.0 GPNC-04-020-080 GPNC-04-040-080 GPNC-04-060-080 GPNC-04-080-080 GPNC-04-100-080 GPNC-04-120-080
5.0 GPNC-05-020-080 GPNC-05-040-080 GPNC-05-060-080 GPNC-05-080-080 GPNC-05-100-080 GPNC-05-120-080
6.0 GPNC-06-020-080 GPNC-06-040-080 GPNC-06-060-080 GPNC-06-080-080 GPNC-06-100-080 GPNC-06-120-080
7.0 GPNC-07-020-080 GPNC-07-040-080 GPNC-07-060-080 GPNC-07-080-080 GPNC-07-100-080 GPNC-07-120-080
8.0 GPNC-08-020-080 GPNC-08-040-080 GPNC-08-060-080 GPNC-08-080-080 - -
9.0 GPNC-09-020-080 GPNC-09-040-080 GPNC-09-060-080 GPNC-09-080-080 - -
10.0 GPNC-10-020-080 GPNC-10-040-080 GPNC-10-060-080 - - -
12.0 GPNC-12-020-080 GPNC-12-040-080 GPNC-12-060-080 - - -

모델명 Catheter length : 130 cm
Balloon Diameter
(mm)		 Balloon Length (mm)
20 40 60 80 100 120
4.0 GPNC-04-020-130 GPNC-04-040-130 GPNC-04-060-130 GPNC-04-080-130 GPNC-04-100-130 GPNC-04-120-130
5.0 GPNC-05-020-130 GPNC-05-040-130 GPNC-05-060-130 GPNC-05-080-130 GPNC-05-100-130 GPNC-05-120-130
6.0 GPNC-06-020-130 GPNC-06-040-130 GPNC-06-060-130 GPNC-06-080-130 GPNC-06-100-130 GPNC-06-120-130
7.0 GPNC-07-020-130 GPNC-07-040-130 GPNC-07-060-130 GPNC-07-080-130 GPNC-07-100-130 GPNC-07-120-130
8.0 GPNC-08-020-130 GPNC-08-040-130 GPNC-08-060-130 GPNC-08-080-130 - -
9.0 GPNC-09-020-130 GPNC-09-040-130 GPNC-09-060-130 GPNC-09-080-130 - -
10.0 GPNC-10-020-130 GPNC-10-040-130 GPNC-10-060-130 - - -
12.0 GPNC-12-020-130 GPNC-12-040-130 GPNC-12-060-130 - - -
